Multi-Robot Pick and Place

In the link below, you can find the code repository for this project: https://github.com/ThomassTon/irobman_lab

1. Introduction

In certain robotic applications, there are scenarios where a single robotic arm may struggle to perform tasks, such as handling a large object or a flexible item. In such cases, two or more robotic arms need to collaborate in order to accomplish the task efficiently.

In this work, we assume the use of two robotic arms working collaboratively to perform motion planning based on the given initial and target positions of the object to be grasped. Additionally, due to the limitations of the simulation framework, object grabbing is implemented through a linking framework rather than actual physical grasping. To test whether the motion planning algorithm can successfully avoid obstacles, we have also introduced a fixed obstacle for testing purposes.

2. Background

Motion planning is used for determining a feasible path or sequence of movements for a robot (or other agents) to achieve a specific task while avoiding obstacles and respecting constraints like joint limits, collision avoidance, and smoothness of the motion.

Motion planning can be broadly categorized into two types: optimization-based methods and sampling-based methods.

2.1 sampling-based motion planning

Sampling-based motion planning constructs feasible paths for a robot by randomly sampling points in the robot’s configuration space (C-space) and connecting these points to form a valid path from the start to the goal, common approaches include RRT[1], RRT*[2], and Bi-RRT[3].

2.2 optimization-based motion planning

Instead of searching for a path first (like in sampling-based methods), the optimization-based motion planning optimizes the motion directly by minimizing or maximizing a specific objective function, such as minimizing travel time, energy, or avoiding obstacles. Common optimization-based methods include KOMO, CHOMP and STOMP.

2.3 KOMO and ST-RRT*

In this project, we utilized two motion planning methods: one is the optimization-based KOMO, and the other is the sampling-based ST-RRT*[7].

2.3.1 KOMO

Newton methods for k-order Markov Optimization is a method used in decision-making where the current decision depends not just on the immediate previous state (as in a first-order Markov process) but on a sequence of previous states, up to k steps in the past:

\[\min_{x_{0:T}} \sum_{t=0}^{T} f_t(x_{t-k:t})^\top f_t(x_{t-k:t}) + \sum_{t,t'} k(t,t') x_t^\top x_{t'}\] \[\text{s.t.} \quad \forall t : g_t(x_{t-k:t}) \leq 0, \quad h_t(x_{t-k:t}) = 0.\]

where \(x_{t-k:t} = (x_{t-k},..., x_{t-1}, x_{t})\) are \(k+1\) tuples of consecutive states. And the the term \(k(t,t^{'})\) is an optional kernel measuring the desired correlation between time steps \(t\) and \(t^{'}\), which we explored but in practice hardly used.

To compute the inverse kinematics of a robotic arm, we typically need to define the following parameters:

\[\begin{aligned} q &\in \mathbb{R}^n &\text{vector of joint angles (robot configuration)} \\ \dot{q} &\in \mathbb{R}^n &\text{vector of joint angular velocities} \\ \phi : q &\mapsto y \in \mathbb{R}^d &\text{feature (or forward kinematic)} \text{e.g. position} \in \mathbb{R}^3 \text{ or vector} \in \mathbb{R}^3 \\ J(q) &= \frac{\partial \phi}{\partial q} \in \mathbb{R}^{d \times n} &\text{Jacobian} \end{aligned}\]

To apply KOMO (K-order Markov Optimization) to inverse kinematics with \(k=2\):

\[\begin{aligned} J_{\text{pos}} &= \sum_{t=1}^{T} \| \mathbf{y}_t^{\text{desired}} - \mathbf{y}_t(\mathbf{q}_t) \|^2 &\text{Error of the end effector} \\ J_{\text{smooth}} &= \sum_{t=3}^{T} \left( \lambda_1 \| \theta_t - \theta_{t-1} \|^2 + \lambda_2 \| \theta_t - 2\theta_{t-1} + \theta_{t-2} \|^2 \right) &\text{Smoothness Constraint}\\ \end{aligned}\]

Specifically:

The final total cost function is:

\[\begin{aligned} J &= J_{pos} + J_{smooth} + \text{other constraint terms} \end{aligned}\]

We need to minimize this objective function \(J\), .i.e,

\[\min_{\theta_{t}, \theta_{t-1}, \theta_{t-2}} J\]

In this work, KOMO will be primarily used in three areas: calculating inverse kinematics, smoothing the path, and generating the optimal path.

2.3.2 ST-RRT*

ST-RRT* is an advanced motion planning algorithm specifically designed for dynamic environments, where both spatial and temporal dimensions need to be considered. Its primary goal is to find paths that satisfy velocity constraints while minimizing arrival time.

Unlike traditional methods that only plan in a configuration space (Q), ST-RRT* adds a time dimension, forming a space-time state space denoted as \(X = Q \times T\), where \(Q\) represents the configuration space and \(T\) represents the time dimension.

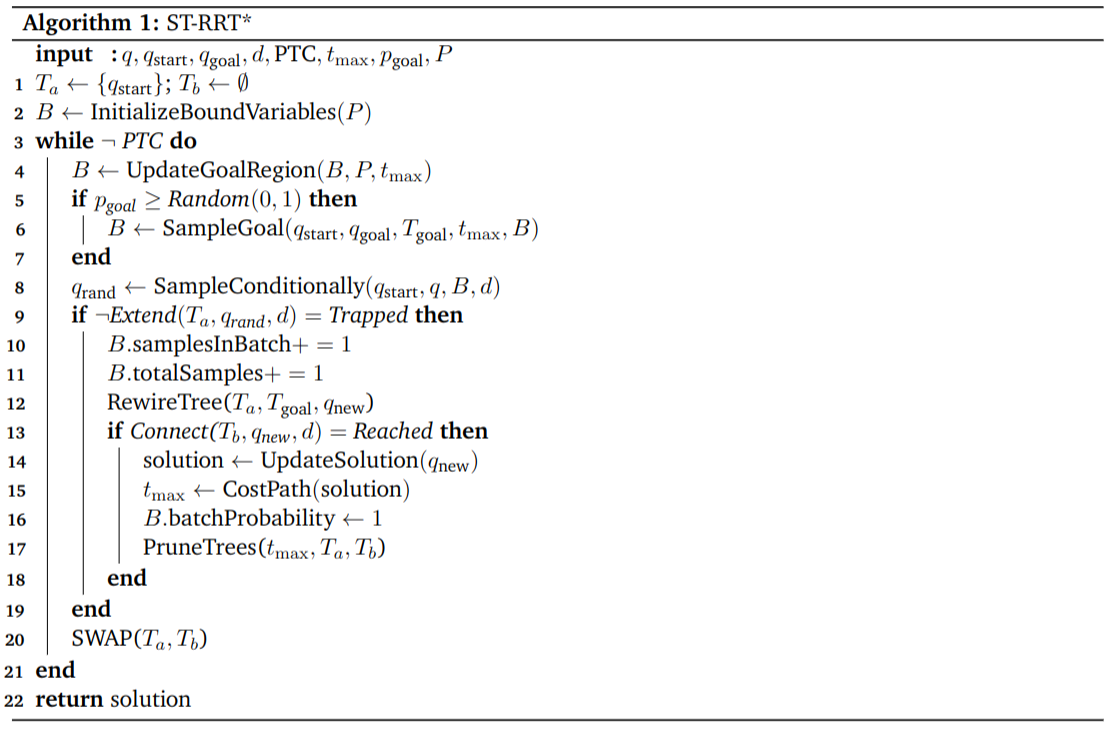

ST-RRT* builds on the dual-tree RRT-Connect framework but introduces several key modifications to handle unbounded time spaces and optimize arrival time:

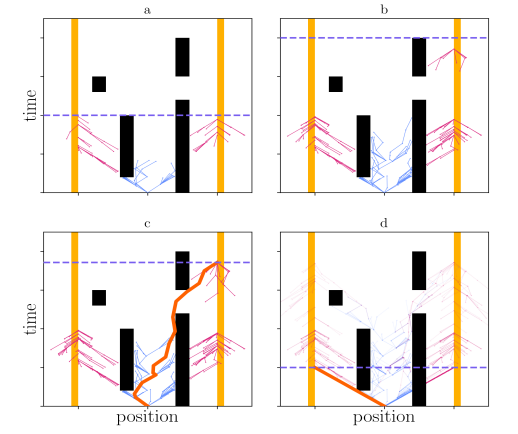

As shown in the figure below, the orange area represents the goal region, and the blue dashed line is an initial estimate of the feasible goal time:

ST-RRT*[7]

3. Implementation

In this section, we will introduce how to achieve dual-arm collaborative object transportation. It can be divided into three main steps: scene setup, task planning, and motion planning.

3.1 Scene Setup

Here, we will set the initial position and target location of the object to be grasped, as well as the fixed positions of any obstacles. Additionally, the positions of the two robots need to be defined. Typically, the robots are placed at a slightly greater distance from each other to prevent collisions while grasping the same object.

In this case, the first three elements of Q represent the displacement coordinates along the x, y, and z axes, while the last four elements represent the rotation angles using quaternions. Additionally, setting contact to 1 enables collision detection.

_obstacle (bin1){ type:ssBox, size:[0.2 0.2 0.1 .01], contact:1 Q:<[ -0, 0, 0.5, 1, 0, .0, 0]> color:[0.9, 0.9, 0.9, 1]}

goal1 (bin1){ joint:rigid type:ssBox, size:[0.1 0.1 0.1 .01], contact:0 Q:<[  0, 0.0, 0.13, 1., 0., .0, 0]> color:[0.4, 1, 1, 0.2]}
goal2 (bin1){ joint:rigid type:ssBox, size:[0.1 0.1 0.1 .01], contact:0 Q:<[  0, 0.0, 0.23, 1., 0., .0, 0]> color:[0.4, 1, 1, 0.2]}

obj2 (bin2){ joint:rigid type:ssBox, size:[0.1 0.1 0.1 .01], contact:1 Q:<[  -0., -0.15, 0.03, 1, 0, .0, 0]> color:[0.4, 1, 1, 1]}
obj1 (bin2){ joint:rigid type:ssBox, size:[0.1 0.1 0.1 .01], contact:1 Q:<[  -0., -0.01, 0.03, 1, 0, .0, 0]> color:[0.4, 1, 1, 1]}

3.2 Task Planning

Task planning refers to determin the sequence of high-level actions or tasks that a robot (or a group of robots) must perform to achieve a specific goal.

Common methods for Task Sequence Planning include Greedy Search, Random Search, and Simulated Annealing Search. Greedy search is a locally optimal strategy that, at each step, selects the best immediate option without considering future consequences. Random search generates task sequences randomly, evaluates their performance, and selects the best-performing sequence. It does not rely on selecting the best option at each step, instead exploring different combinations of task sequences randomly. Simulated annealing is inspired by the physical process of annealing in metallurgy, the algorithm initially allows the acceptance of worse solutions (higher “temperature”) to escape local optima. As the search progresses, the “temperature” is gradually lowered, and the algorithm becomes more likely to accept only better solutions, converging toward a global optimum.

However, in our work, there is no need for complex task planning. Instead, we directly use the sequence of objects as the task sequence. Here, a task represents the movement of a robotic arm from position A to position B. For example, moving the arm from the initial position to the position where it can grasp an object constitutes a task. The content of the task is determined by the joint configurations that correspond to the target positions of the robot’s end effector. For example, if two objects need to be transported, this results in four tasks.

3.3 Motion Planning

To implement motion planning, the process is divided into three main steps. First, the robot’s inverse kinematics are calculated based on the initial and target positions of the objects. Next, using the results from the inverse kinematics, the path for the first robot is planned, allowing it to approach and grasp the object. Finally, the path for the second robot is planned based on the trajectory of the first robot.

3.3.1 Calculating Inverse Kinematics

In this step, we use the KOMO optimizer to solve the inverse kinematics:

We can configure the optimizer using the skeleton framework: Number represents the timestep, ‘SY_touch’ indicates contact with the target, can be replaced with other types of constraints, such as SY_stable, which indicates being stationary relative to the target, ‘pen_tip’ represents the robot’s end-effector, ‘obj’ represents the target. And at this stage, since we need to ensure that the two robots do not collide, we configure both robots simultaneously when setting up KOMO.

Additionally, we can use addObjective to add extra constraints, such as ensuring the distance between the end-effector and the object is zero, or enforcing that the end-effector remains perpendicular to the object’s surface.

Skeleton S = {
    {1., 1., SY_touch, {pen_tip_0, obj}},
    {1., 1., SY_touch, {pen_tip_1, obj}},
    {1., 2., SY_stable, {pen_tip_0, obj}},
    {2., 2., SY_poseEq, {obj, goal}},
};
komo.setSkeleton(S);
komo.addObjective({1.,1.}, FS_distance, {obj, STRING(robots[0] << "pen_tip")}, OT_ineq, {1e1},{-0.0});
komo.addObjective({1.,1.}, FS_distance, {obj, STRING(robots[1] << "pen_tip")}, OT_ineq, {1e1},{-0.0});

3.3.2 Path planning and grasping for fisrt robot

Path planning is implemented using two methods: one based on the KOMO optimizer, and the other using ST-RRT*.

OptOptions options;
options.stopIters = 100;  // Set the maximum number of iterations.
options.damping = 1e-3;
options.stopLineSteps = 5;
komo.setConfiguration(-2, q0); // By configuring KOMO for second-order optimization, it preserves position information from time step t-2 to t.
komo.setConfiguration(-1, q0);
komo.setConfiguration(0, q0);
komo.add_collision(true, .001, 1e1);  //set collision detection
komo.addObjective({1}, FS_qItself, {}, OT_eq, {1e2}, q1); // set goal position q1
komo.addObjective({0.95, 1.0}, FS_qItself, {}, OT_eq, {1e1}, {},1); // speed slow at end
komo.addObjective({0.95, 1.0}, FS_qItself, {}, OT_eq, {1e1}, {}, 2); // acceleration slow at end
komo.run(options);
// get the path from KOMO
arr path(ts.N, q0.N);
for (uint j = 0; j < ts.N; ++j) {
path[j] = komo.getPath_q(j);
};
\[t_{start_{task+1}} = max(t_{end_{task}}^{robot1}, t_{end_{task}}^{robot2}) + 1\]
auto to = CPlanner[obj];
auto from = CPlanner["pen_tip"]; //end effector
to->unLink();
to->linkFrom(from, true);

3.3.3 Path planning for second robot

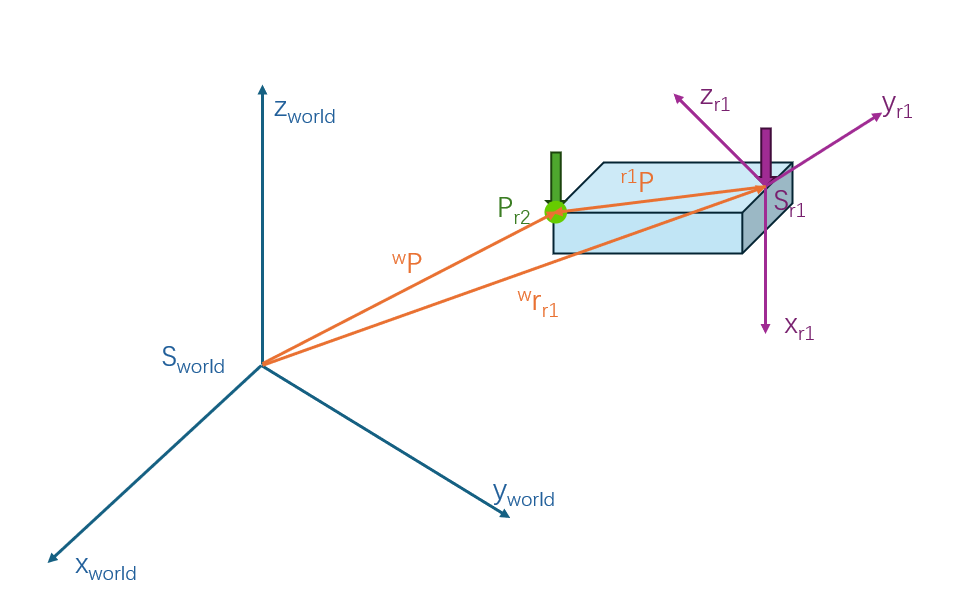

At this stage, we first need to calculate the relative positions \(^{r1}P\) of the two end-effectors during object grasping, based on the initial states of both robots generated by KOMO.

\[^{r_1}P = -^{w}r_{r_1} + ^{r_1}R_{w}\ ^{w}P\]

Subsequently, based on the rotation matrix \(^{w}R_{r_1}\) and coordinates \(^{w}r_{r_1}\) of the end-effector from the path of the first robot, the coordinates \(^{w}P\) of the end-effector for the second robot can be determined, which are essentially the waypoints.

\[\begin{aligned} ^{w}P = ^{w}r_{r_1} + ^{w}R_{r_1}\ ^{r_1}P \end{aligned}\]
uint size_of_path =  paths[sequence[0].first].back().path.N /7;
arr t_a1;
arr waypoints(0u,3);        // buffer for waypoints
CPlanner.setJointState(paths[robot][0].path[-1]);
for(uint i = 0; i<size_of_path; i++){
    auto r0 = paths[sequence[0].first][1].path[i];
    auto t = paths[sequence[0].first].back().t(i);
    CTest.setJointState(r0);
    const auto pen_tip =  STRING(sequence[0].first << "pen_tip");
    auto p_0 = CTest[pen_tip]->getPosition();
    auto rotationmatrix = CTest[pen_tip]->getRotationMatrix();
    auto _goal_pose = get_trans_position(p_0,rotationmatrix,p_0_1);
    waypoints.append(_goal_pose);
    t_a1.append(t);
}
auto path_a1 = get_path_from_waypoints(CPlanner,robot, waypoints);

Once we have the waypoints for the second robot, we can use KOMO to generate a path that follows these waypoints.


auto get_path_from_waypoints(rai::Configuration &C, const std::string &robot, const arr waypoints) {
  for(uint i=0; i<waypoints.d0;i++){    // add waypoints to frame
    auto waypoint = STRING("waypoint"<<i);
    C.addFrame(waypoint);
    arr size;
    size.append(0.1);
    C.getFrame(waypoint)->setShape(rai::ShapeType::ST_marker,size);
    C.getFrame(waypoint)->setPosition(waypoints[i]);
  }
  setActive(C, robot);
  const auto home = C.getJointState();
  OptOptions options;
  options.stopIters = 100;
  options.damping = 1e-3;
  KOMO komo;
  komo.verbose = 0;
  komo.setModel(C, true);
  komo.setDiscreteOpt(waypoints.d0);
  for(uint i=0; i<waypoints.d0;i++){  // add the waypoints to komo
    auto waypoint = STRING("waypoint"<<i);
    komo.addObjective({double(i+1)},FS_positionDiff,{STRING(robot << "pen_tip"), waypoint},OT_eq,{1e1});
  }
  arr q;
  komo.run_prepare(0.0, true);
  komo.run(options);
  komo.optimize();
  arr path(waypoints.d0, 7);
  uint len_path = komo.getPath_q().d0;
  for (uint j = 0; j < len_path; ++j) {
  return path;
}

4. Result

During the testing phase, we created four scenarios: transporting a single object, transporting multiple objects, stacking and transporting objects, and obstacle avoidance. For each scenario, we applied both KOMO and ST-RRT* for motion planning.

From the table below, it can be seen that when both methods are able to find a valid path, KOMO consistently produces shorter paths than ST-RRT*. However, ST-RRT* is more versatile, as there are certain scenarios where KOMO fails to find a valid path.

Table1: Path Length Comparison

Method Task1 Task2 Task3 Task4
KOMO 129 203 311 134
ST-RRT* 131 221 315 144

From the video, we can see that whether it’s object transportation or stacking, the planner is able to successfully find efficient paths while avoiding obstacles. However, we also observed that in certain scenarios, only ST-RRT* could find a valid path, whereas KOMO could not.

Task1: Collaborative grasp of a box using KOMO
Task2: Collaborative grasp of two boxes using KOMO
Task3: Collaborative stacking three boxes uisng KOMO
Task4: Collaborative grasp of a box while avoiding obstacles using KOMO
Task1: Collaborative grasp of a box using ST-RRT*

5. Conclusion

Here, we summarize the content of the current work and some of its limitations. Additionally, we outline potential future directions closely related to this research.

5.1 Summary

To coordinate the motion planning, we first plan the movement of the first arm and save its waypoints. Then, based on the relative transformation between the two end-effectors, we generate the waypoints for the second arm and use KOMO to follow these waypoints. We designed various test scenarios for this approach, such as object transportation, stacking, and obstacle avoidance, all of which were successfully executed. For path planning, we compared two methods: KOMO and ST-RRT*. Our comparison revealed some differences between their characteristics. In general, KOMO tends to produce shorter paths, but its applicability is not as robust as ST-RRT*, as there are cases where KOMO fails to find a valid path.

5.2 Limitations and future works
